Auto Bench CNC Plasma Cutting Machine 400013002500 Synchronic Driver

Name: Auto Bench CNC Plasma Cutting Machine 400013002500 Synchronic Driver
Brand: Yahong
Price: 1 USD

China Auto Bench CNC Plasma Cutting Machine 4000*1300*2500 Synchronic Driver wholesale

Brand Name : Yahong

Certification : CE / ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 20pcs per month

Delivery Time : 15 days after received your payment

Packaging Details : lining--anti-static film package firstly, waterproof, moistureproof. Intermediate--around the perimeter of the box, there is bubble. Outer--export standard packing, fumigation-free plywood.

Model Number : YH1530

Product Name : CNC Bench Type Plasma Cutting Machine

Drive Mode : Bilateral drive

Other cutting size : can be customized

Effective Cutting Size : 1500*3000

Machine Size : 4000*1300*2500

Contact Now

Planer Structure CNC Straight Flame Cutting Machine For Straight Cutting

Description:

1. The synchronic double drivers are adopted in longitudinal linear guide track. More stable it transfers, more precision ir operates.
2. The light design of crossbeam has a good quality, light self-weight and small inertia.

3. It is equipped with a dust cleaning device. The whole machine has a compact structure.

Auto Bench CNC Plasma Cutting Machine 4000*1300*2500 Synchronic Driver

Technical Parameters for CNC Straight Flame Cutting Machine:

No.	Items	Quantity and gauge	Instruction
1	Model of the mainframe	2000×4000mm	Dual drive
2	Track width(machined by large planomiller, with high temprature annealing twice, and high strength complete welding)	2000mm	Effective cutting width 1500mm
3	Track length of machine ,U71Mn43kg	4000mm	Effective cutting width 3000mm
4	CNC system (set)	1	MicroEDGE pro
5	Transverse driving station(group)	1	Made by Yahong
6	Plasma power source(set)	1	HPR13XD, manual gas control
7	THC	1	Integrated Sensor THC
8	Anti-collision device	1	shenzhen HYD
9	Servo motor	4	Panasonic Japan
10	Planetary gear box	3	Shimpo Japan
11	Lognitudinal and transverse air-control cable transmission(set)	2
12	Nesting software	1	Fastcam pro
13	Stabilized power supply	1	Taiwan Guding electronics
14	Linear guide track	4	Taiwan PMI
15	Industrial Air Conditioner	1	Shanghai WINHEE Electric
16	Cutting table
17	Machine color		Yellow or customer's option
18	Laser positioning device		Banner of USA
19	Auto Lubrication for rail guide		Beijia
20	Machine gross weight		8000kg
21	Machine size(mm)		4000×2300×1500mm

Application:

The cutting accuracy reaches the excellent target for the cutting of Aluminum Sheet, Stainless Steel Plate, Titanium Plate, Copper Plate, Galvanized Sheet, Advertising with Luminous Three-Dimensional Characters and Metal Panel with T-shot. The cutting incision is small, tidy and neat, with no burr, so that avoid the second process.

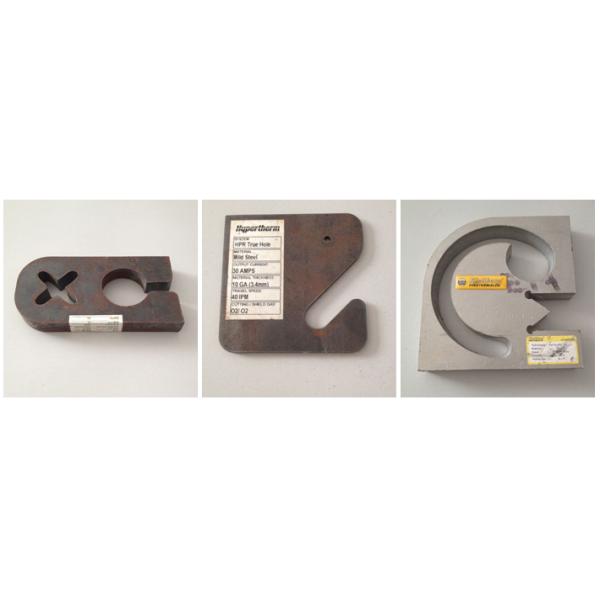

Cutting Samples:

Auto Bench CNC Plasma Cutting Machine 4000*1300*2500 Synchronic Driver

CNC Bench Type Plasma Cutting Machine:
